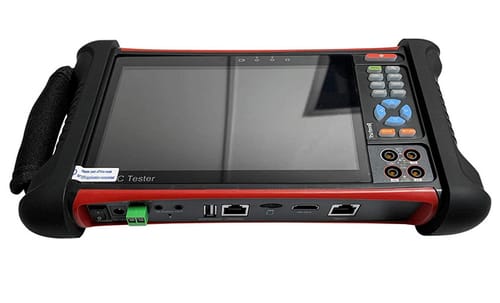

| Rsrteng X7-MOVTADHS 4K CCTV Camera Tester |
Rsrteng X7-MOVTADHS Upgraded Version 4K CCTV Camera Tester 7 Inch IPS Touch Screen CCTV Tester with IP Camera Test Support TVI CVI AHD SDI DMM OPM VFL TDR POE WIFI HDMI DC24V Dual Network Ports Port
2021 Latest Updated Camera Test Rsrteng X7-MOVTADHS 4K Camera Test Updated Many Features:
Increased DC24V/2A power output;
From one gigabit network port to two gigabit network ports;
5000mAh to 7800mAh battery;
HDMI output ranges from 1080p/60fps to 4k/30fps.
The tester is used for the installation and maintenance of IP network cameras, HD coaxial surveillance cameras, and security systems. 7-inch HD touch screen 1920 x 1200 pixels, 1.8GHz quad-core processor, 2GB RAM, 16GB EMMC, more powerful data processing, faster system operation Support IP camera 12 MP resolution, coaxially tested HD camera, maximum resolution 4 MP; TDR Cable Tester, Digital Multimeter, Optical Power Meter, Visible Laser Light Source, POE, WIFI 2.4/5 GHz; DC output power 5V.2A/12V.3A/24V.2A; Professional Multiple Tests is a one-stop application that is compatible with more than 90% of current brands' cameras. Use it to make the installation process easy and efficient.
Network camera test:
12MP 4K H.265/H.264 IP Camera Test. Detect IP / OVIF / RTSP / APK reading client quickly. Quick video: View the video automatically and generate a test report. Support PoE, WiFi, Hik, DH camera test tools, ovif test tools, network tools, etc.
HD coaxial camera test:
Camera Test Max 4K 8MP TVI / AHD / CVI / SDI, 3840 x 2160 pixels, supports PTZ axis control and OSD menu call.
CVBS Camera Test and Color Tape Test:
1 * BNC input, NTSC/PAL (auto setting). PTZ control, RS485 control, baud 600-115200 bps, compatible with more than 30 protocols. Such as PELCO-D/P and so on. Supports PAL / NTSC color bar testing.
TDR cable break point test
Measure the length of power supplies, BNC cables, network cables, telephone lines, RVV cables, elevator cables and Category 5/6 cables up to 1200 metres. The cable detects if it is not obstructed and accurately determines the preset breaking point.
You can use the included cable tester to test the type of network cable layout and whether it is unlocked.
 |
| Rsrteng X7-MOVTADHS 4K CCTV Camera Tester |
- New version upgrade project 1. Increase the output power DC24V/2A; 2. From one Gigabit Ethernet port to two Gigabit Ethernet ports; 3. Battery from 5000mAh to 7800mAh; 4.HDMI output from 1080P/60fps to 4K/30fps
- [Main Support Functions] Model: X7-MOVTADHS. Processor: 1.8GB, RAM: 2GB, ROM: 16GB, 7 inch IPS touch screen, 1920*1200 resolution. Supports digital multimeter, optical power meter, optical error locator, TDR cable tester, Supports H.265, 4K, OVIF, POE, WiFi (2.4G and 5G), RS485, Audio Input, HDMI I/O (4K), LED lights, two Gigabit Ethernet ports.
- [Compatible Cameras] 12MP/H.265/H.264 IP Camera Test, 8MP TVI CVI AHD SDI Coaxial Camera Test, CVBS Camera Test, Auto Quick Video View, Generate Test Report.
- [Support function] IP detection / OVIF / IPC quick test / RTSP / APK client reading. Hik Test Tool (Start Hik Camera in one click, test photos, change username, password and IP settings). DH Test Tool (Edit DH Camera Test, Username, Password and IP Settings). Supports PTZ coaxial control. UTC control and OSD menu call. RS485 controller, baud rate 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung and Panasonic.
- [Additional parameters]: Built-in 7.6V lithium polymer battery, 7800mAh, Input: DC12V/2A; Output: DC24V/2A, DC12V/3A, DC5V/2A, PoE output power 48V, max power 25.5W Language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese, etc. One year free warranty. Dimensions / Weight 9.4 x 5.3 x 1.4 inches / 0.7 kg (1.6 lbs).
