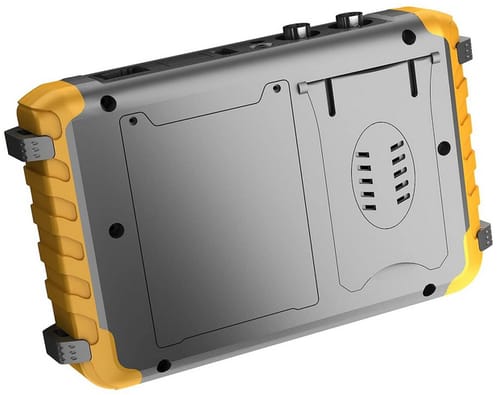

| EVERSECU 5 Inch 4 in 1 CCTV Monitor Tester |
EVERSECU 5 Inch 4 in 1 CCTV Screen Tester AHD/TVI/CVI Coaxial HD Video Screen Tester Analog/UTP Cable Video Tester DC12V Output for CCTV Camera Testing with VGA and HDMI Input
product specification
PTZ control
Video Signal Test
DC12V 1A power output
Image generator: a multi-format video output image generator that sends a variety of standard color graphics parts (such as PAL and NTSC)
Audio Test: Test the audio input of the recording device. Use the audio cable to connect the test device and the recording device.
Enhanced Network Cable Test: You can test the network cable connection through the UTP CABLE TEST port on the meter.
VGA / HDMI Input: Supports VGA / HDMI 1.1 compatible digital input. After connecting VGA/HDMI video, please switch the selector switch to HDMI or VGA mode.
TVI camera test: HD TVI CCTV test, supports 1MP, 2MP, 3MP, 4MP, 5MP. When the TVI signal is input, the tester will display the HD-TVI camera image.
AHD camera test: HD CCTV test, supports 1MP, 2MP, 3MP, 4MP, 5MP. When the AHD signal is input, the tester will display the image from the AHD camera.
CVI Camera Test: HD CCTV Test, Supports 1MP, 2MP, 3MP, 4MP. When the CVI signal is input, the tester displays the image from the CVI camera.
LED lights: It is helpful for engineers to install and maintain the security system at night; Easy to use LED on/off buttons.
 |
| EVERSECU 5 Inch 4 in 1 CCTV Monitor Tester |
- 5.0 inch 800 x 480 HD viewing angle screen, camera image quality more intuitive and smooth, support PAL / NTSC standard video signal, support CVBS + AHD (5 MP) + TVI (5 MP) + CVI (4 MP) test camera, four Inches - CCTV Test Monitor
- Designed for installation and maintenance of analog (CVBS) and coaxial HD cameras with TVI, CVI and AHD. (Network cameras are not supported). It also has many useful functions such as video display, pan/tilt control, DC12V output power, audio test, image generator, VGA video signal input, HDMI1.0 signal input, RS485 data search, cable test, LED lights, etc.
- Video screen tester, 5.0 inch (RGB) x480 high resolution screen, wide viewing angle, wider viewing angle, more intuitive, easy to check camera image quality. Supports PAL / NTSC standard video signal.
- PTZ Controller: Built-in Pelco-D/P-PTZ control protocol video screen tester, etc. Via RS485 interface, users can control pan and tilt to rotate up and down, adjust zoom, focal length and iris in one device.
- DC12V 1A Output Power: Use the DC12V (1A) output power of the lab to power the camera. It is useful for display and testing when no power source is available. Rechargeable: Built-in 18650 2600mAh x 2, after 3-4 hours of charging, the working time can be 11 hours.
