| 2020 EinScan Pro 2X Plus Handheld 3D Scanner |
EinScan Pro 2X Plus 2020 3D Portable Scanner, 0.2mm Resolution, 0.04mm Resolution, 2 Year Warranty and Lifetime SolidEdge
EinScan Pro 2X Plus multi-function portable 3D scanner
Versatile portable 3D scanner that can get high-resolution results:
The EnScan Pro 2X Plus is a great option for scanning medium and large objects (4 inches to 13 feet).
Ideas for high-quality 3D modeling
High compatibility:
Output in standard file format including STL, OBJ, PLY, 3MF, ASC and P3
Multiple scan modes and alignment methods
Supports fast manual scanning, high-resolution manual scanning, static scanning without turntable, static scanning with turntable positioning, multiple alignment modes including feature alignment, mark alignment, turntable coding, target alignment and manual alignment.
Modular structure for a wide range of applications
Color packaging, industrial packaging and HD Prime laminating are optional accessories for the EinScan Pro 2X Series and can be used for various scanning experiments and applications.
Optional Package: (sold separately)
Colorful packaging: Wipe off the fabric of the paint.
Industrial packaging: tripod stand and rotating tray. Use in static scanning mode.
HD Prime Package: Dramatically improved EinScan-Pro 2x plus Portable HD Scan Mode.
SolidEdge CAD SHINING 3D Edition - Includes a lifetime dongle license:
SIEMENS PLM Software Design Tools
Affinity Modeling
Simultaneous modeling
Reverse Engineering
Generative design
simulation
Additive Manufacturing
Minimum computer system configuration:
Windows 7, 8, or 10 (64-bit)
Use chalk spray on glass, black, glossy, or highly reflective surfaces.
CPU: Intel i5 Quad Core i7 Recommended
Storage: 16 GB RAM or more
Video: Nvidia GTX 750M or better with 4GB video memory (must be Nvidia GTX or RTX)
USB 3.0 port
 |
| 2020 EinScan Pro 2X Plus Handheld 3D Scanner |
- 3D UMAX is the official distributor for Einscan in the USA with a two-year warranty
- The accuracy of single scan ranges from 0.04mm to 0.1mm, depending on the scanning mode. 1.5 million dots per second / 30 fps; Single scanning area is 208 x 136-312 x 204mm. Working distance 5.1 m; Various optional accessories support 4 scan modes
- The highest precision is 0.2mm, the lowest precision is 3.0mm. Scan speed: Up to 1,500,000 dpi (30fps) in Fast Manual Scan mode
- Improved software with a new user interface and operating mode that allows you to set resolution options after scanning while processing data for faster scans. Mesh editing features like fill in holes, smoothing, and sharpening have been added

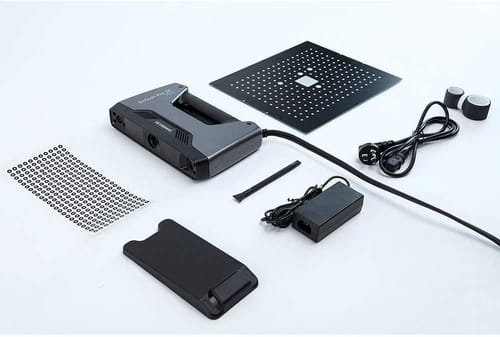

- Package Included: 1 x EinScan Pro 2X Plus Handheld 3D Scanner; 1 x USB 3.0 cable; 1 x SolidEdge Shining3D CAD version; 1 x Quick Recording Unit 1 x Calibration Card 1 x Reflective Marking Kit
